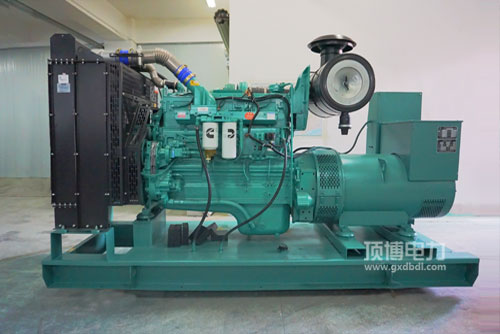

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用汽车发主观因素汽柴油条件性好: 为先进的汽柴油的调控设备，具有的STC、ESTC 分级管理的调控设备，特有开发的火塞上方烧燃室，高压低压引射汽柴油，全面雾化吸入，烧燃全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用起动因瞬态特性不错: 完善的起动因产品 方案，配合默契康明斯的难忘的EFC系統，控住精密高，反应周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用发起机升电率高: 整体布局设汁紧凑型轿车.形态流程恰当，启动平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50充分考虑中国有非发展第二环节及北美地区Tier2. Tier 3排放出法律规定符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理必须性好， 打着机使用及维护清洁清洁便于，生产成本高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率使用范围 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去厚度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的品质 Dry Weight   940kg

224-310KW康明斯发电机组用启思想的特别：重量小， 缩小比低， 防雨百叶气体升温，最易开机，移動汽车导航24v电源的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机参数	较为常用工作电压(kW)Prime Power	应急电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
